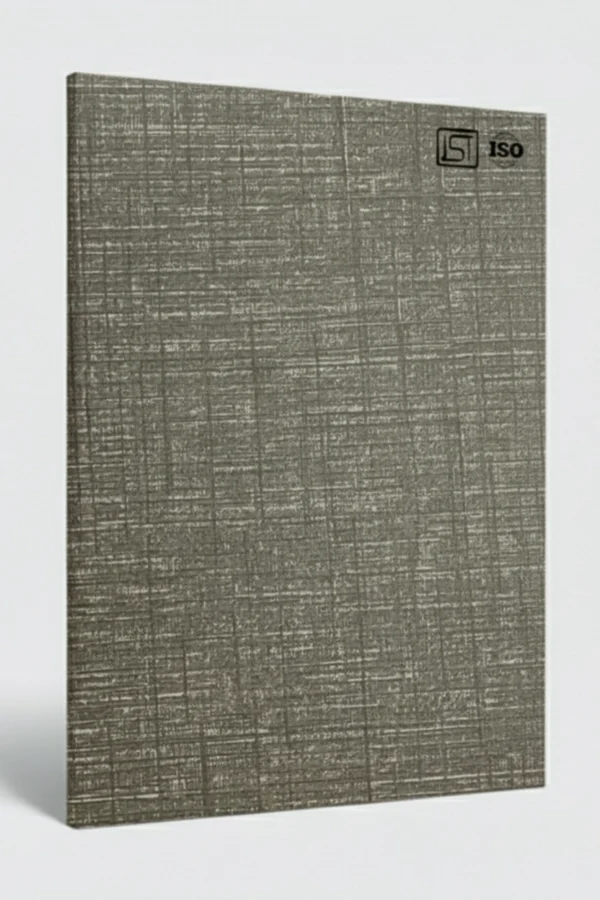

B 7040 | Dark Fabricano
Olive Taupe Fabric Liner Laminate with Matt Finish
Inspired by rich fabric textures, Ogaan's B 7040 Dark Fabricano Liner Laminate features an olive taupe matt finish that adds depth and sophistication to furniture interiors. Crafted in 0.72mm thickness, it is suitable for wall units, office storage, wardrobes, cabinets, and modular furniture.
₹749Per Sheet ( Inc. of all tax )
Free Shipping and EMI Facility Available at Checkout
- *Limited Time Offer! Enjoy a Flat 10% Discount on All Products.
- *Prices shown are for end customers only. Actual prices may vary according to terms and conditions.
- *We provide special rates to architects, contractors, dealers and distributors only for bulk orders. Talk to us now. T&C
USPs of Ogaan Laminates
Scratch
Resistant
15 Years
Warranty
All Weather
Resistant
High
Gloss
Anti
Fingerprint
Specifications
-
Model No:B 7040
-
Color:Olive Taupe
-
Texture Name:Smooth Fabric
-
Dimension in Feet:8*4 FT
-
Dimension in MM:1220 X 2440
-
Scratch Resistant:Yes
-
Color Fastening:Yes
-
Warranty:15 Years Warranty
-
UV Colour Fastness:Yes
-
Thickness:0.72MM
-
Anti Bacterial:Yes
-
Finishes:Matt
-
Water Resistance:Yes
-
Features:Abrasion Resistant, Anti Fungal Impact Resistant, Crack Resistant, Shock Resistance, Heat Resistant, Resistance To Cigarette Burns, 100 % PHENOLIC
Techincal Specifications
Test Report
| Properties | Standard Result As Per (IS:2046-1995) | Test Results of Ogaan Laminates | |||
| Resistance to Surface Wear (Revolution Minimum) | ≥ 350 Rev | ≥ 375 Rev | |||
| RESISTANCE TO IMERSION IN BOILING WATER | RESISTANCE TO IMERSION IN BOILING WATER MASS INCREASE(%) |
MASS INCREASE(%) | 10% (Max) | 7.5% (Max) | |
| Gloss | RESISTANCE TO IMERSION IN BOILING WATER Gloss |
12% (Max) | 8.5% (Max) | ||
| Resistance to Dry Heat at 180°C | Resistance to Dry Heat at 180°C THICKNESS INCREASE(%) |
THICKNESS INCREASE(%) | Rating-3 | Rating-4 | |
| OTHERS | Resistance to Dry Heat at 180°C OTHERS |
Rating-4 | Rating-5 | ||
| Dimension Stability at Elevated Temperature (%) | Dimension Stability at Elevated Temperature (%) Machine Direction |
Machine Direction | ≤ 0.55% | 0.42% | |
| Cross Direction | Dimensional Stability at Elevated Temperature (%) Cross Direction |
≤ 1.05% | 0.70% | ||
| Resistance to Impact by Small-Diameter Ball | ≥ 20 N | 25 N | |||
| Resistance to Cracking | Rating-4 | Rating-5 | |||
| Resistance to Scratching (Min) | ≥ 2.0 N | 2.4 N | |||
| DIMENSION STABILITY AT ELEVATED TEMPRATURE(%) | DIMENSION STABILITY AT ELEVATED TEMPRATURE(%) GROUP 1 & 2 |
GROUP 1 & 2 | Rating-5 | Rating-5 | |
| GROUP 3 & 4 | DIMENSION STABILITY AT ELEVATED TEMPRATURE(%) GROUP 3 & 4 |
Rating-4 | Rating-4 | ||
| Resistance to Cigarette Burns | Rating-3 | Rating-4 | |||
| Resistance to Steam | Rating-4 | Rating-5 | |||
| Appearance | No ABC Defects | No ABC Defects | |||
Application
Bedroom
Living Room
Office
Kitchen
Washroom
Retail Store
Hotel
Restaurant
Cafe
Public Spaces
Laboratory
Our Certifications
ISO 9001:2015
ISO 14001:2015
ISO 45001:2018
GREENGUARD
BIFMA Level-3
FSC
